EF04055 Octopus PIR sensor Brick

Ár:
2.590 Ft (2.039 Ft + ÁFA)
Átlagos értékelés: Nem értékelt
Elérhetőség: Raktáron

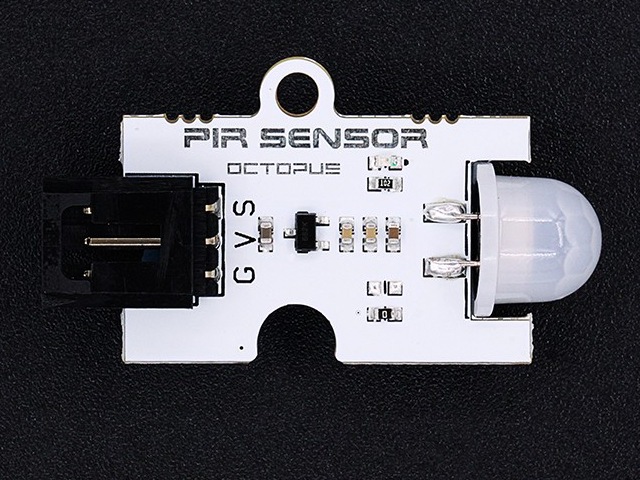

EF04055 Octopus PIR sensor Brick

OCTOPUS PIR Sensor module is a type of electronic building block based on AM412 pyroelectric digital smart sensor. It can be used in sensing and detection of human or animal motion, sensing distance is about 4-5 meters.

Menny.:db

Leírás

Specification:

Power supply 5V

Digital signal processing:

Power adjustable,save more energy

Two-way differential high impedance sensor input

Built-in filter, screen the interference by other frequency

Excellent power supply rejection, Insensitive to RF interference Schmidt REL output

Low voltage,low power consumption, instantaneous settling after power up

Working temperature -25 ~ 85

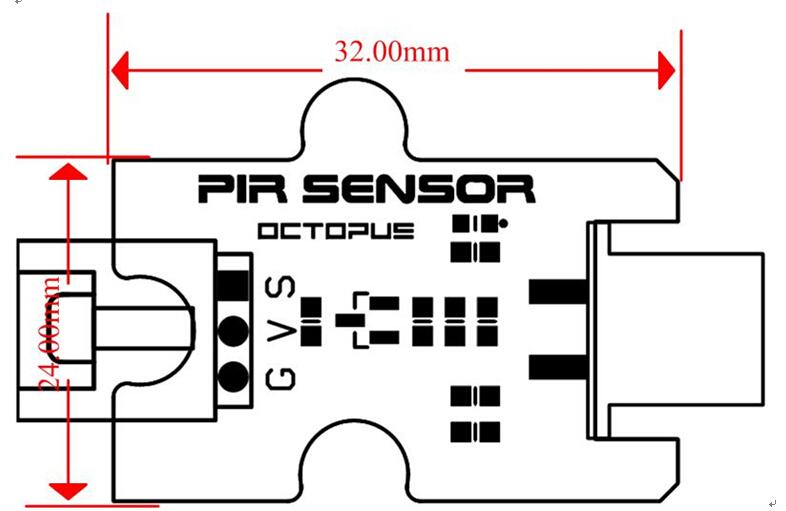

Size:<32.00mm×24.00mm





Quick Start

Hardware Connection

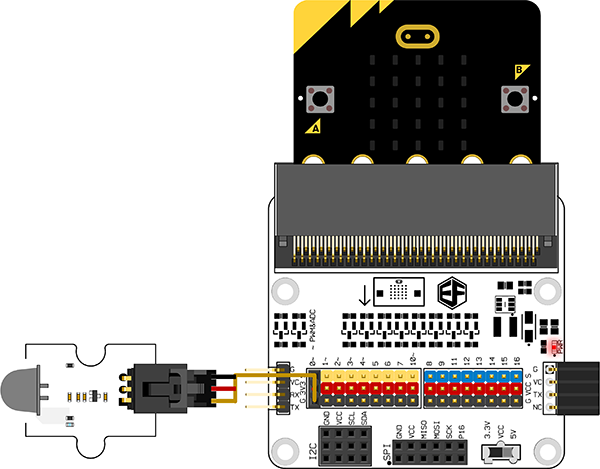

Connect octopus PIR sensor brick to P0 port on OCTOPUS:BIT.



Programming

Code

You can see the whole program from the link here: https://makecode.microbit.org/_EqC6UW9m2Hxr

Or you can download it from the page below.



Result

Once any movement made by human or animals within the range of 5 meters was detected by PIR sensor, micro:bit will display a rectangle; when there is no movement detected, micro:bit will display a heart.



Resources:

You can visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
