K5108 Kitronik Motor / Stepper Motor Drive Board
Átlagos értékelés: | Nem értékelt |
Elérhetőség: | 5 db raktáron |
Kitronik 5108 Kitronik Motor / Stepper Motor Drive Board |
|
Szállítási díj: | 1.890 Ft |
|
Leírás

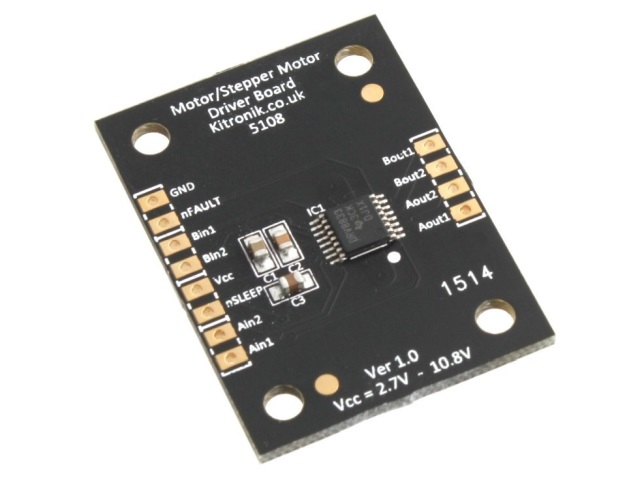

Kitronik 5108 Kitronik Motor / Stepper Motor Drive Board
Description
This circuit uses the DRV8833 and allows up to 2 DC motors or 1 stepper motor to be controlled by a microprocessor. This is useful as a microcontroller cannot, on its own, output enough power to drive most motors. Using this board you can control motor with digital outputs (two per motor) from your microcontroller while powering it separately from a suitable power source. The motor driver operates off a wide power supply (2.7-10.8V) and can provide up to 1.5A per output or 3A if the motor is connected to both outputs in parallel. Depending upon the state of the two control lines, the motor can be controlled to coast, reverse, go forward & brake.
The board can easily be connected to a microcontroller and will operate at 3V or 5V.
Features:
- Drives two motors or one stepper motor.
- 1.5A per channel.
Contents:
- 1 x Motor/Stepper Driver Breakout Board.
Possible applications include:
- Robotics.
Dimensions:
- Length: 38mm.
- Width: 28mm.
- Height: 3mm.
Connections:
- Vcc: Supply Voltage (0-10.8V)
- GND: Ground
- nSLEEP: Sleep mode pin (Bringing this low enters the device into sleep mode)
- xINx: Control, logic inputs (AIN1, AIN2, BIN1, BIN2)
- xOUTx: Motor outputs (AOUT1, AOUT2, BOUT1, BOUT2)
Resources:
Technical Information
Attribute | Value |
Length | 38mm. |
Width | 28mm. |
Height | 3mm. |
Min supply voltage | 2.7V |
Max supply voltage | 10.8V |
Max output current (continuous) | 1.5A |
Max output current (peak) | 2.0A |
Max PWM frequency | 250 kHz |
Logic level input voltage | -0.3V to 5.75V |
