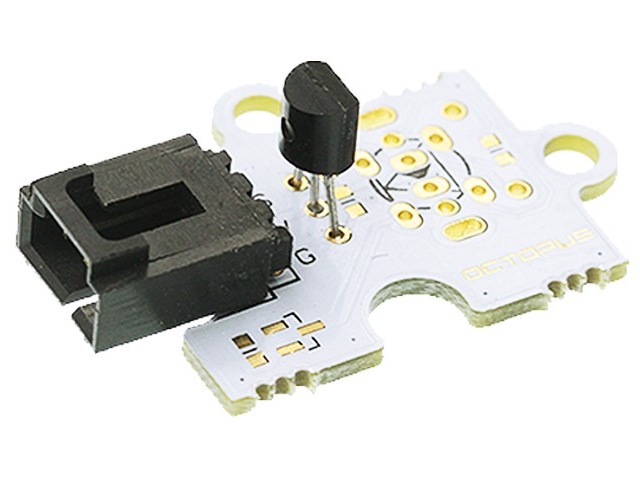

EF04079 Octopus Temp. Sensor Brick TMP36 for Arduino Micro

Ár:
1.490 Ft (1.173 Ft + ÁFA)
Átlagos értékelés: Nem értékelt
Elérhetőség: 4 db raktáron

EF04079 Octopus Temp. Sensor Brick TMP36 for Arduino Micro

Menny.:db

Leírás

Introduction

Octopus TMP36 Temperature Sensor Brick is a temperature sensor with low voltage and accurate celsius read. It can provide voltage output,which forms a linear relationship with celsius temperature. TMP36 do not need any external calibration. When it is at +25°C, its typical accuracy is ±1°C,while it is within the range from -40°C to +125°C, its typical accuracy is ±2°C.

Features

Accuracy:±2°C(Typical value in the whole temperature range)
Linear Degree:±0.5°C(Typical)
Enable to drive big capacitive load stably.
Low Working Voltage:+2.7 V to +5.5 V
When power currency lower than 50 μA, it has very small automatic heat effect.
No need to do any external calibration.
Nominated Temperature Measuring Range:-40 °C to +125 °C, working temperature can be up to +150 °C.
Ratio Coefficient:+10 mV/°C
Analog Output
Static Current:lower than 50 μA
Turn Off Current:Maximum 0.5 μA

Package List

Components Qty(pcs)
Octopus TMP36 Temperature Sensor Brick 1
Analog Sensor Cable 1
