EF04041 Octopus Analog Rotation Brick OBARot

Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos even buttons, just plug and play.

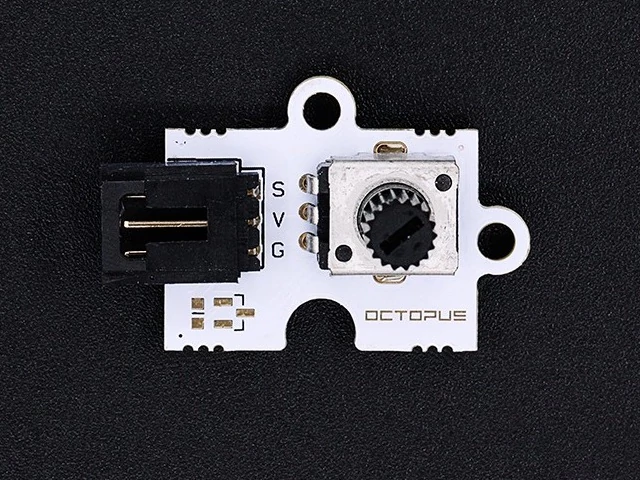

Octopus Analog Rotation Brick is arduino compatible and can be rotated up to 300-degree. It is based on the potentiometer. With the Arduino IO expansion board, in combination, it can be very easy to achieve position-dependent interaction with the rotating effect or produce MIDI instrument.
The Freaduino Sensor Shield is the perfect shield to connect this senor to Arduino. Or Freaduino UNO which we had pre-stray Octopus Brick interface.

Dimension

Specification

Power supply needs: 5V
Interface type: Analog
Pin Definition: S-Sigal V-VCC G-GND
Wide detecting scope
Fast response and High sensitivity
300 degree rotation sensor
Size: 19x27mm

Package List

Hardware Connection

Connect analog rotation brick to P0 port on OCTOPUS:BIT.

Code

You can see the whole program from the link
Or you can download it from the page below.

Rotate the knob on analog rotation brick in clockwise direction, then LEDs on micro:bit screen will be turned on gradually. Rotate the knob in anti-clockwise direction, then LEDs will be turned off one by one.
