Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos…even buttons, just plug and play.

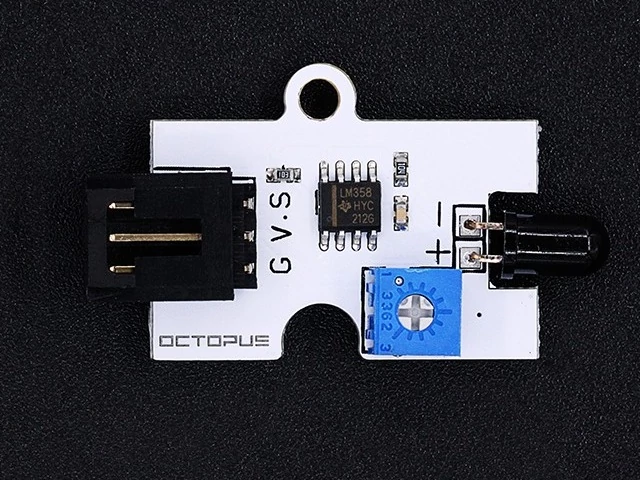

OCTOPUS Flame Sensor is a module based on the infrared receiver (IR probe), simple in design, light, convenient, very sensitive. It can be used to detect the source of fire, make a simple fire-fighting robots, produce fire alarms and so on.
Note that the infrared sensor operating temperature is generally from -25 degree to 85 degree,therefore, in order to avoid damage, in the process of use, maintain suitable distance from the flame probe to the flame, not too near.
Three pins electronic building blocks interface: input 5V - GND. S for signal output.
Adjustable sensitivity (shown in blue digital potentiometer adjustment)
Output type: Digital switching output 0-1
Power supply needs: 5V
Interface type: Analog
Pin Definition: 1-Signal 2-VCC 3-GND
Fast response and High sensitivity
Simple drive circuit
Stable and long life
|Octopus Flame Sensor||1|
|Analog Sensor Cable||1|
