EF03425 Rainbow LED Strip for ring:bit car v2

Ár:
1.490 Ft (1.173 Ft + ÁFA)
Átlagos értékelés: Nem értékelt
Elérhetőség: 3 db raktáron

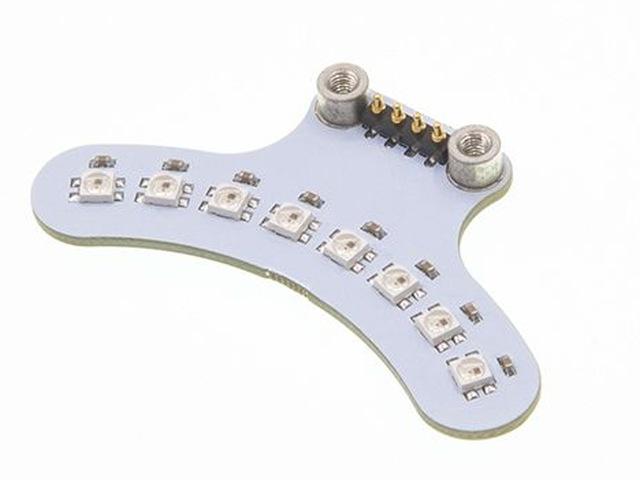

  • Ring:bit car V2 lights-bar module is the dedicated module which designed for Ring:Bit Car V2. It brings you beautiful mutiple color with simple assemble.

  • Come with 8 Rainbow full color LEDs. You can update your ring:bit car to a car with headlights and rainbow lights.

Menny.:db

Leírás

Introduction


  • Ring:bit car V2 lights-bar module is the dedicated module which designed for Ring:Bit Car V2. It brings you beautiful mutiple color with simple assemble.

  • Come with 8 Rainbow full color LEDs. You can update your ring:bit car to a car with headlights and rainbow lights.

Features


  • Input voltage 3V~5V,and directly drived by micro:bit.

  • Standard 3 line GVS port, only occupy one I/O port.

  • 8 small LEDs, power saving and energy saving.

  • Each leds can be code independently and show RGB color.

Parameter

Items Parameters Remarks
Name Ring:bit car v2 light bar -
SKU EF03425 -
Working Voltage DC 3-5V -
Port Ring:bit car dedicated pin ports -
Output Signal Simulation -
LEDs 8 pcs -
Dimension 60.8 x 33.20mm -
Net weight 5.7g -

Dimensions:


Quick to Start


Hardware Connection


  • First, insert this module to the baseboard of the Ring:bit car V2.

  • Then, screw up the screws

  • Completed

Software Programming


  • Program a simple light-bar code in the makecode .

  • Set and initialize “strip” variable, connect LED from P0-P10.

  • Set LED to show rainbow color.

  • Move the color one by one in forever loop.

  • Show colors.

Links for this code:https://makecode.microbit.org/_Eyc3eCLLj2YF

Result


  • Rainbow lights

Files


WIKI
