EF03418 8x16 matrix modul

Ár:
2.590 Ft (2.039 Ft + ÁFA)
Átlagos értékelés: Nem értékelt
Elérhetőség: Raktáron
8 x 16 matrix module is a kind of 8 x 16 matrix screen that can display numbers, commonly used letters and symbols with scrolling-displaying function. It adopts IIC bus protocol and makes it easy to connect and operate.
Menny.:db

Leírás

  • Introduction


    8 x 16 matrix module is a kind of 8 x 16 matrix screen that can display numbers, commonly used letters and symbols with scrolling-displaying function. It adopts IIC bus protocol and makes it easy to connect and operate.

    Characteristic


    The matrix module is of high luminance, low consumption and good quality.
    It has original outlook with silk print design.
    It adopts IIC bus protocol and makes it easy to connect and operate.
    It has three user-defined hardware address bit .

    Outlook and Dimension

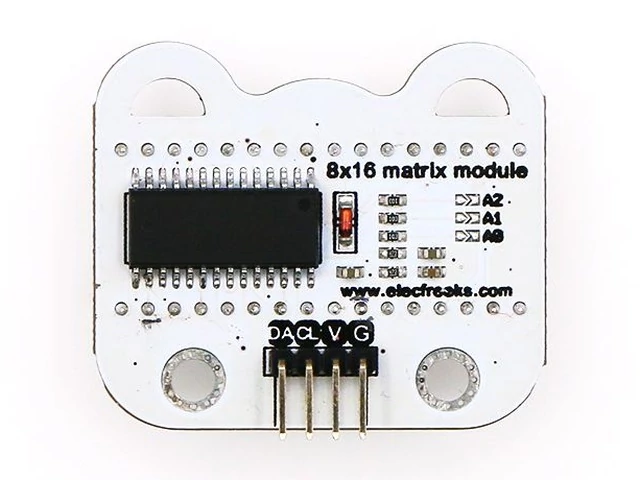

    Connector Diagram for Pins

    Introduction to Main Function Modules

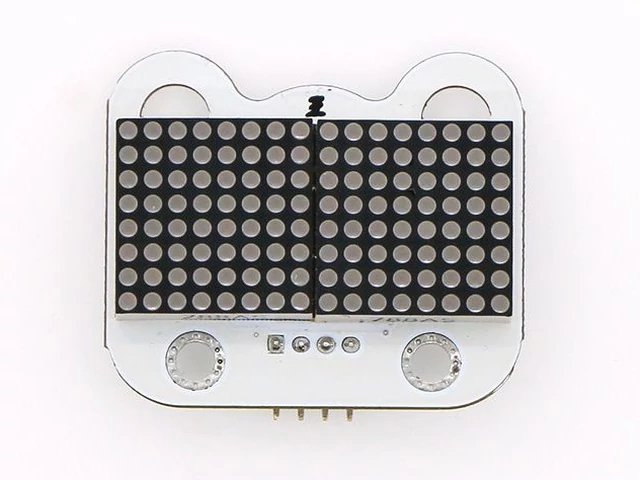

    8x16 matrix

    Each LED can be turned on or off separately to display numbers, commonly used letters and symbols.

    12C Communication Interface



    It communicates with SCM through 12C communication mode.

    Quick Start


    Hardware Connection

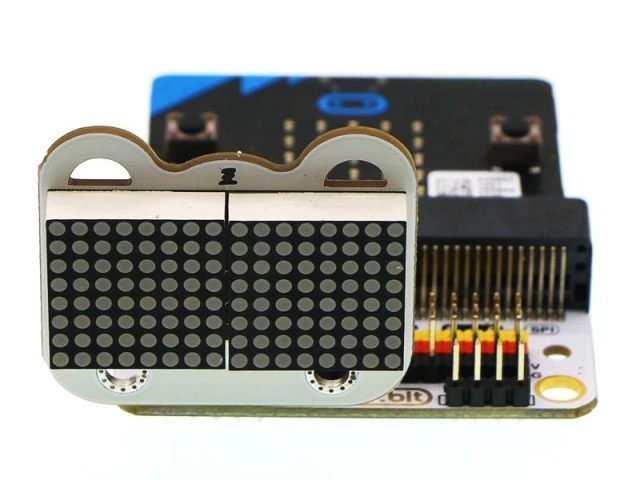

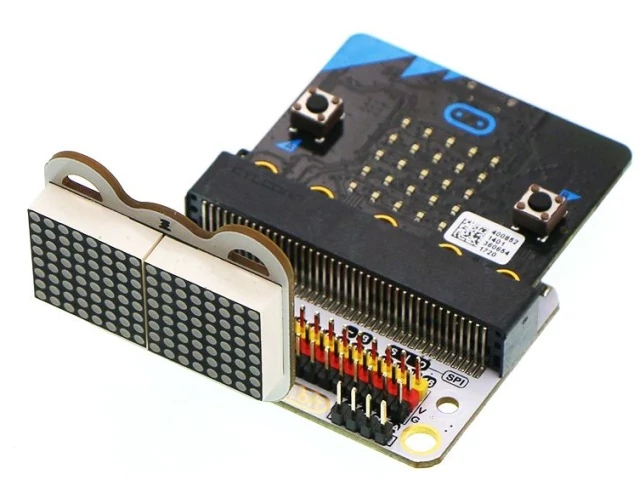

    Insert the micro:bit into sensor:bit and then insert 8x16 matrix module into its equivalent IIC connector.

Programming



Software Program

Use makecode to program and achieve the scrolling-displaying on 8x16 led matrix display.

The links of the program: https://makecode.microbit.org/_FsFWvpXP4gsm

Result

The scroll-displaying begins from top to bottom and then from left to right on the 8x16 matrix module.

Parameter


Items Parameter
Name 8x16 matrix module
Version V1.2
SKU EF03418
Operation Voltage DC 3-5V
Communication Mode IIC Connector
Dimension 37x43mm
Net Weight 11.6g


 Package List

Items Quantity
8x16 matrix module 1
jumper wire 4
