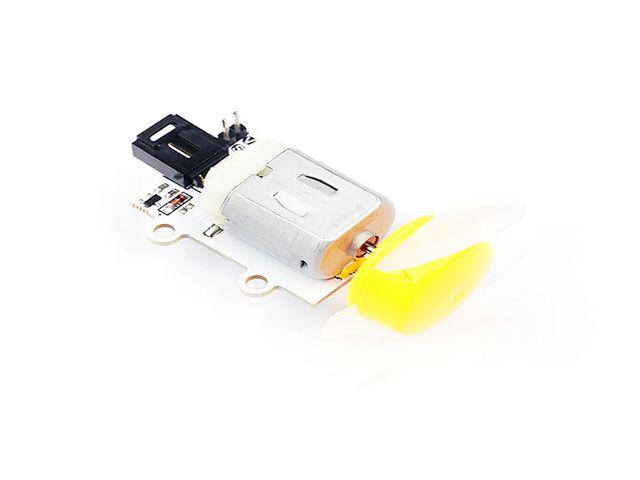

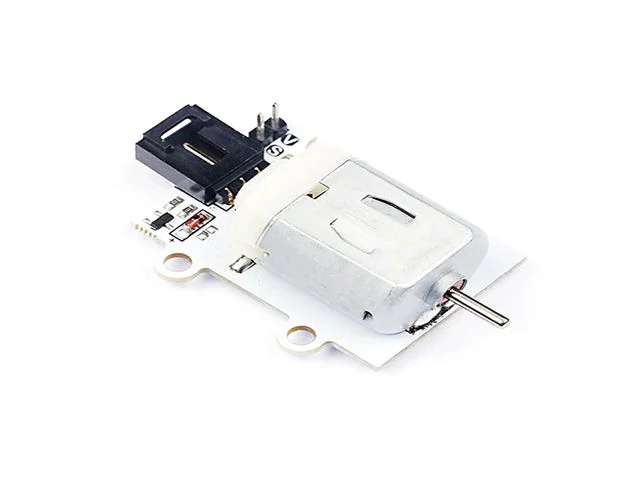

EF04059 Octopus motor brick

OCTOPUS Motor Brick is a type of simple electronic building blocks of the fan motor drive module, it can be used as simple Arduino teaching demo, convenient for Arduino beginners to learn.

FEATURES

• Power supply 5V
• N-MOS IRLML2502TRPBF with high current driving capability
• low-power fan motor
• Working current 120mA
• Working temperature -25 ~ 85
• Size 39.33mm×31.28mm

HARDWARE CONNECTION

Connection note: Connect this module to the P16 port on OCTOPUS:BIT, insert the micro:bit board into the OCTOPUS:BIT and slide the switch to 5V.

CODE

You can see the whole program from the link
Or you can download it from the page below.
