EF04028 Octopus Smoke Sensor MQ-2 Brick OBMQ02

Introduction

Octopus Electronic Bricks, you can use them build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos even buttons, just plug and play.

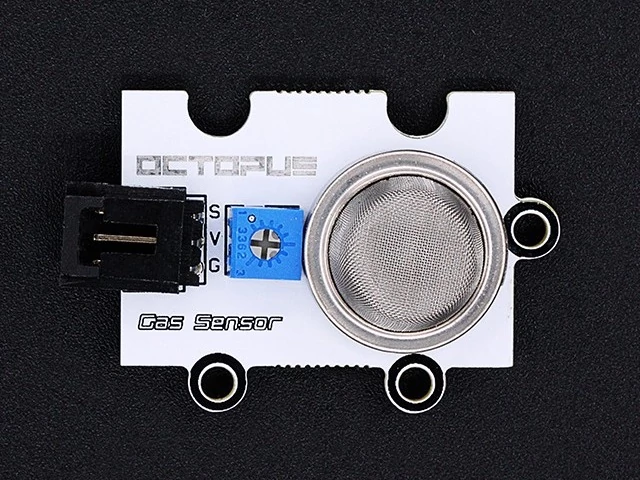

The analog gas sensor - MQ2 is used in gas leakage detecting equipments in consumer and industry markets, this sensor is suitable for detecting LPG, i-butane, propane, methane ,alcohol, Hydrogen, smoke.It has a high sensitivity and fast response time.And the sensitivity can be adjusted by the potentiometer.

Dimension

Specification

Power supply needs: 5V
Interface type: Analog
Pin Definition: S-Sigal V-VCC G-GND
Wide detecting scope
Fast response and High sensitivity
Simple drive circuit
Stable and long life
Size: 38x27mm

Package List
