EF04001 Octopus Tilt Sensor

Introduction

Octopus Electronic Bricks, you can use them to build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos...even buttons, just plug and play.

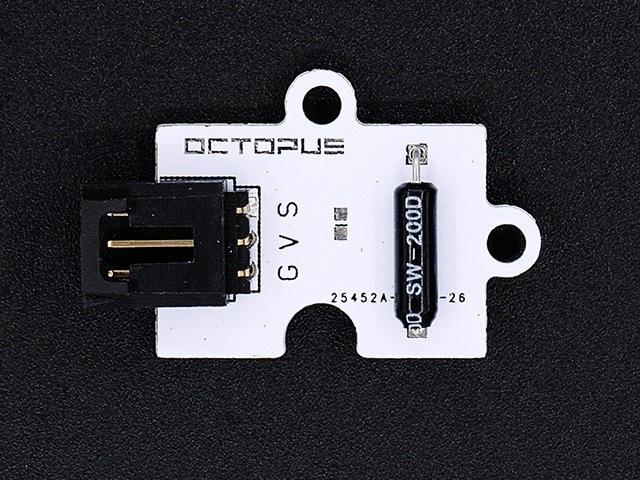

Octopus Tilt Sensor is a sensor based on tilt switch,used together with Arduino specific sensor shield for the measurement of object angle. Three pins electronic building blocks interface: input 5V - GND. S for the detection pin.

Dimension

Feature
Operating voltage:DC 5.0V
Power supply needs: 5V
Interface type: Analog
Pin Definition: 1-Signal 2-VCC 3-GND
Fast response and High sensitivity
Simple drive circuit
Stable and long life

Package List

Hardware Connection

Connect this tilt sensor to P1 port on OCTOPUS:BIT.

Code

You can see the whole program from the link
Or you can download it from the page below.

Programming

Code

You can see the whole program from the link here: https://makecode.microbit.org/_FUYC4RYMW9Xk

Or you can download the program from the page below.

Result

Rotate the sensor, micro:bit will display a heart or rectangle separately under different status.
